OBD2 Scanners That Program TPMS Sensors, and the Ones That Only Read Codes

What matters in daily use

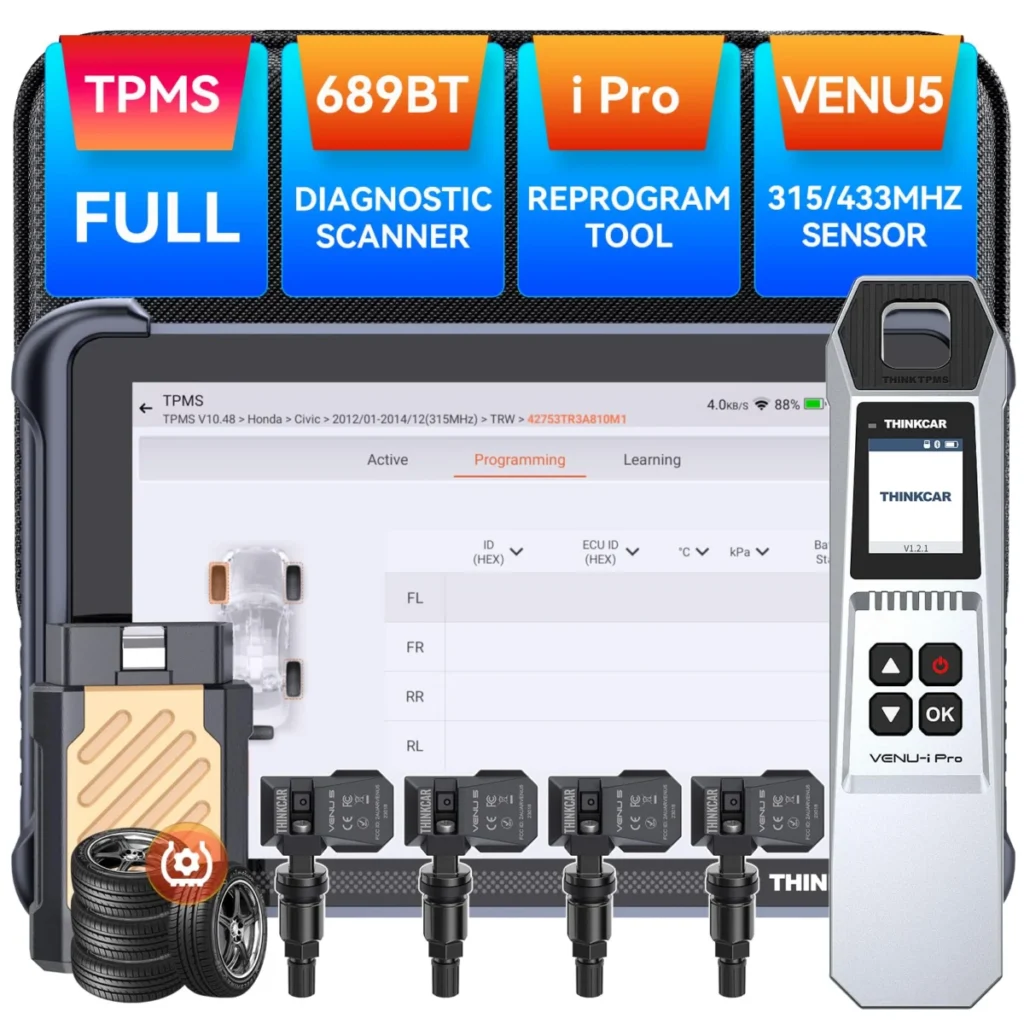

This is a kit rather than a single device: the THINKSCAN 689BT bidirectional scan tool, the VENU iPro sensor tool and four VENU5 315/433MHz universal sensors. The iPro activates, reads and learns sensors and reports sensor ID, pressure, temperature and battery status. The 689BT then reads and clears TPMS fault codes and warning lights, though the listing notes the light only clears once the underlying TPMS fault is repaired.

The 8-inch Android 10 tablet and free lifetime updates suit a small shop that wants one box for tire work and engine codes. The limit is scope: the published specifications list engine and TPMS systems, so it is narrower than the Autel MaxiCheck MX808S-TS, which covers all systems and 32 service functions. The iPro also programs only THINKCAR sensors, not other brands.

Specifications

What matters in daily use

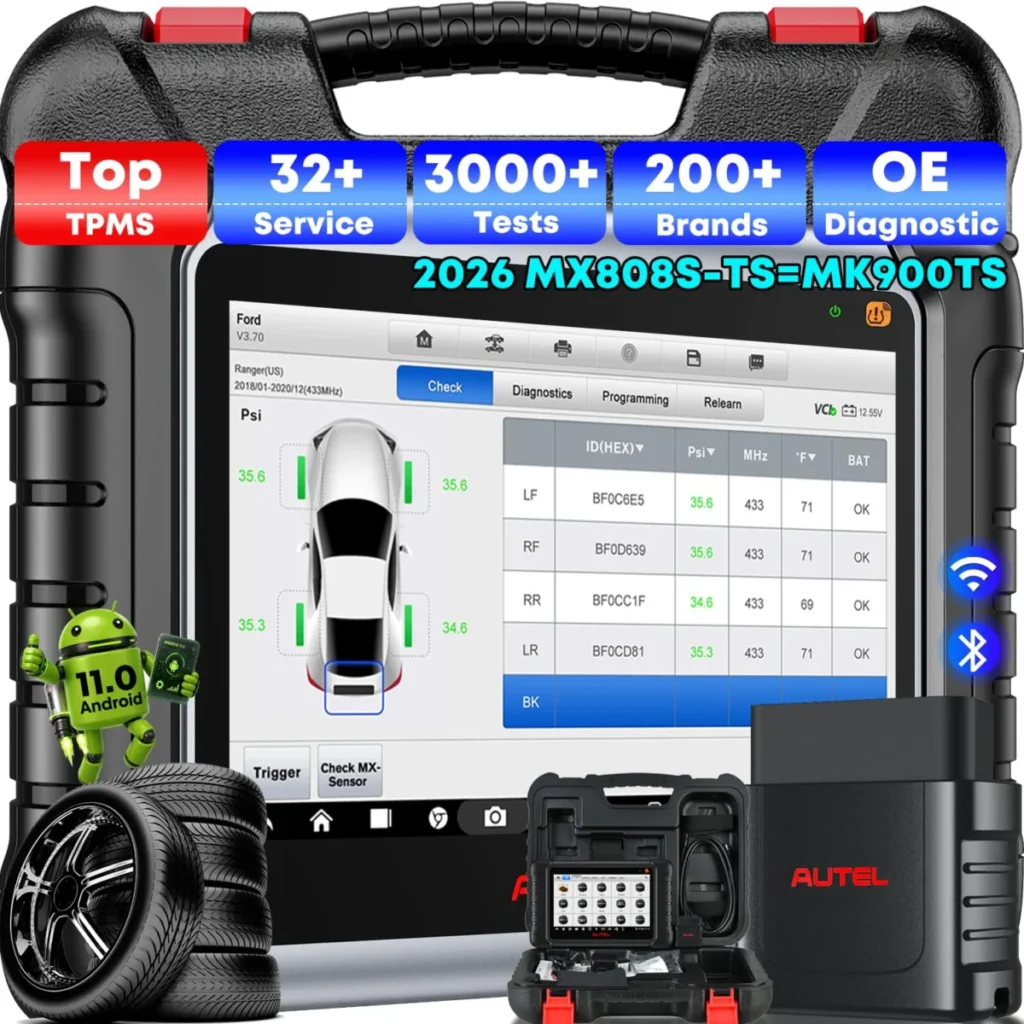

The MX808S-TS is a wired bidirectional scan tool with a 7-inch Android 11 screen and a 2.3 lb body. It performs TPMS sensor programming, OEM sensor relearn and TPMS light reset, and the listing puts it on par with higher-tier Autel TPMS models. It also runs 3000+ active tests and 32 service functions including oil reset, EPB reset, SAS calibration, BMS reset and ABS bleed, so a tire job and a brake job share one tool.

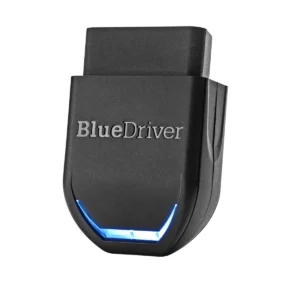

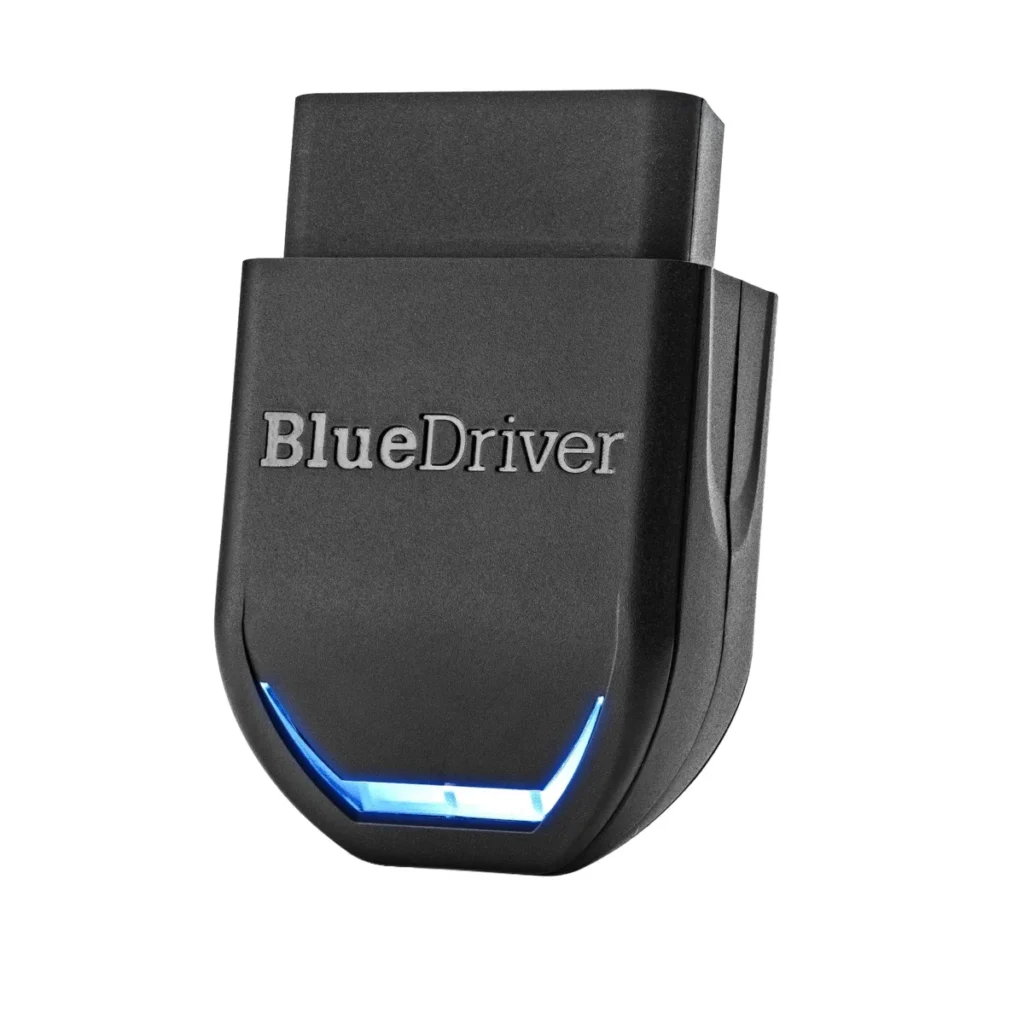

The tradeoff is cost and complexity against simpler picks. The THINKSCAN 689BT TPMS Combo bundles four sensors for a lower outlay, and the BlueDriver OBD2 Scanner handles owner-level TPMS code reading with no subscription. Autel notes a subscription in the listing and services vary by car, so confirm your VIN before buying. Coverage spans 150+ US, European and Asian models.

Specifications

What matters in daily use

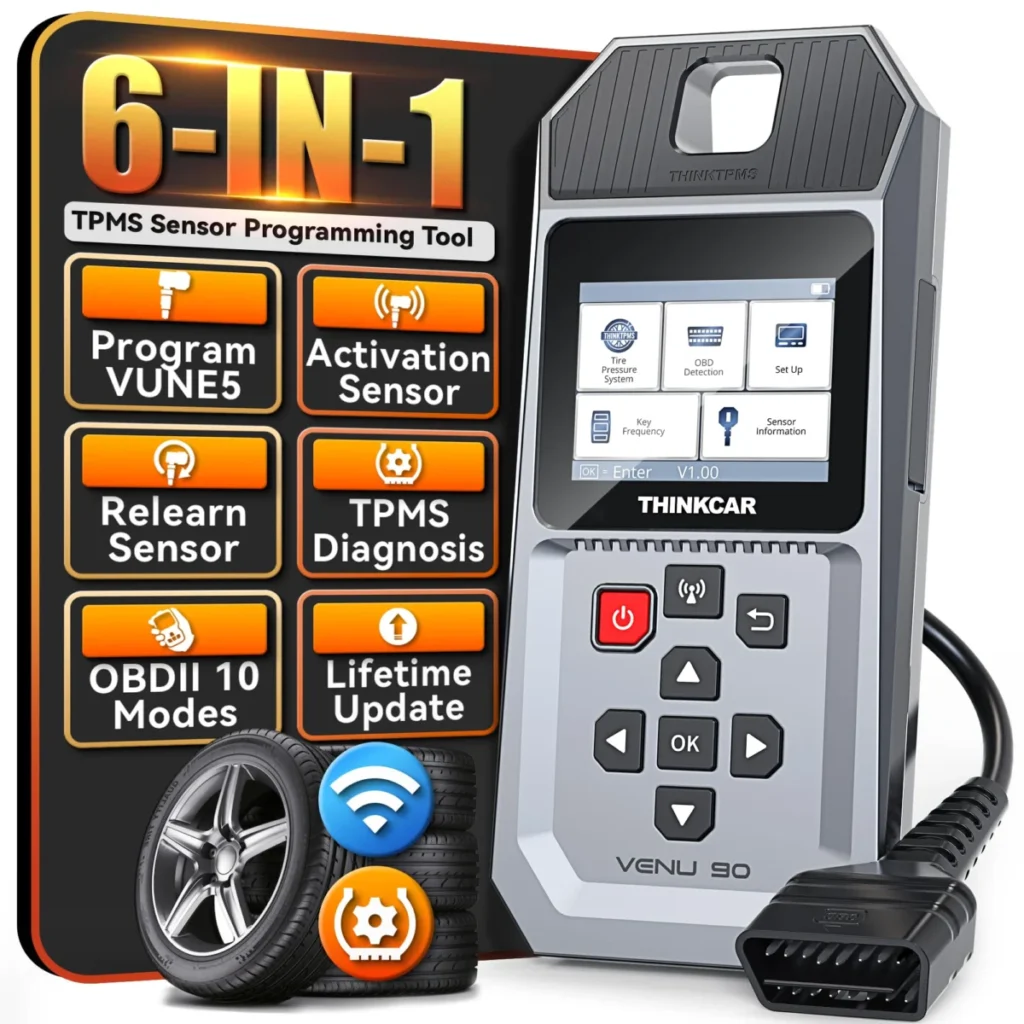

The VENU90 is a handheld TPMS tool with a 2.8-inch screen that activates, reads and relearns 315/433MHz sensors and runs a TPMS reset on compatible vehicles. It also reads and clears engine and TPMS codes and shows live data over CAN, so a tire warning light plus a stored DTC can be checked in one stop.

Because it is read-only, the VENU90 cannot run active tests or service resets beyond TPMS. That is the tradeoff for its price and size: it suits a DIY owner doing seasonal tire swaps and sensor replacement, not a shop diagnosing ABS or running an oil reset. Against the XTOOL TP500, the VENU90 gives up 17 service resets and all-system coverage, but it is the simpler device for a job that only involves wheels and tire pressure. Wi-Fi updates keep sensor compatibility current.

Specifications

What matters in daily use

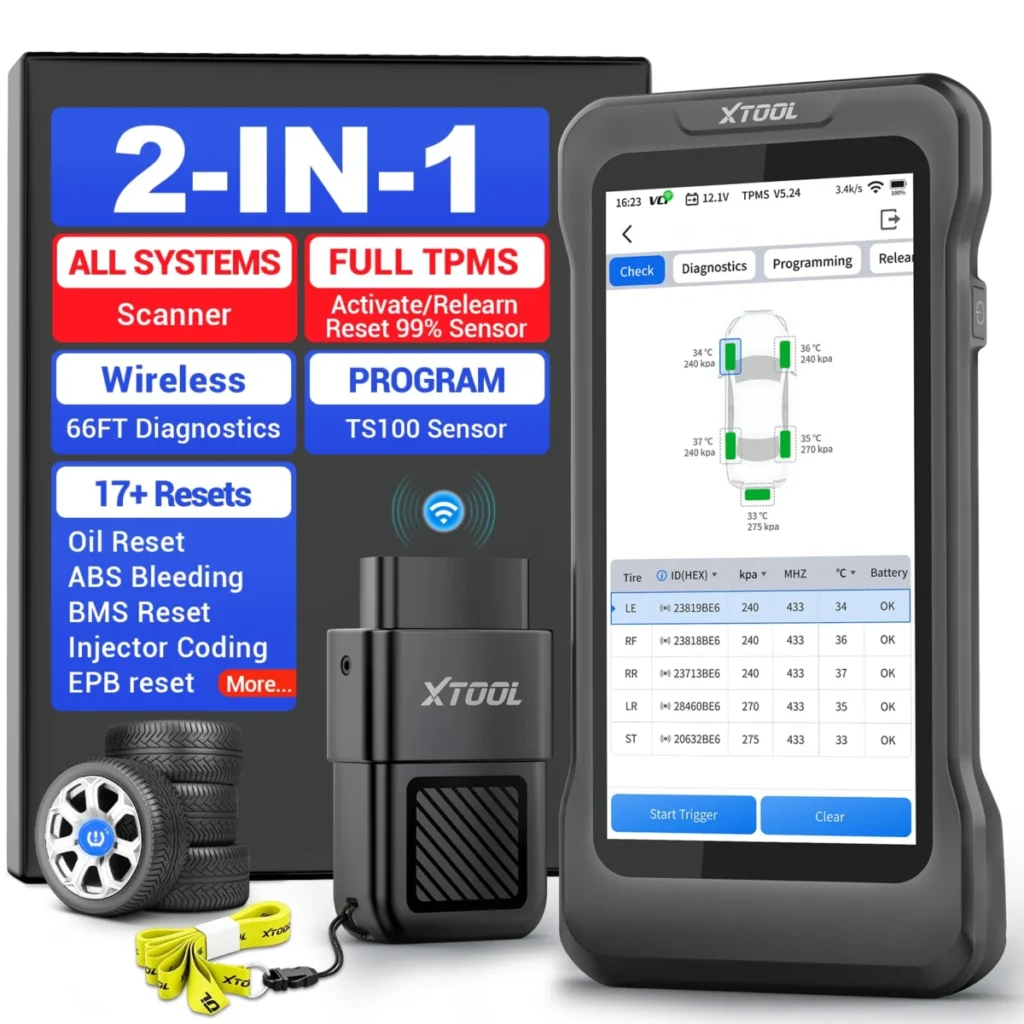

The TP500 combines a TPMS tool with a full-system scanner: it activates and relearns 315/433MHz sensors, reads sensor ID, pressure, temperature and battery status, and reads codes across engine, ABS, SRS, transmission, body and more. Its 17 service functions include oil reset, EPB reset, BMS reset, throttle relearn, ABS auto bleed and injector coding. That breadth is why it outranks the THINKCAR VENU90 for a home mechanic who wants one device for maintenance and tire work.

The wireless link and 5.45-inch touchscreen separate it from wired handhelds, and free lifetime updates mean no renewal cost. The catch is that it is listed as read-only, so it reads and resets but does not send active test commands the way the Autel MaxiCheck MX808S-TS does. Sensor programming is also restricted to XTOOL TS100 and TS100 PRO sensors, so check that your replacement sensors match before relying on it.

Specifications

What matters in daily use

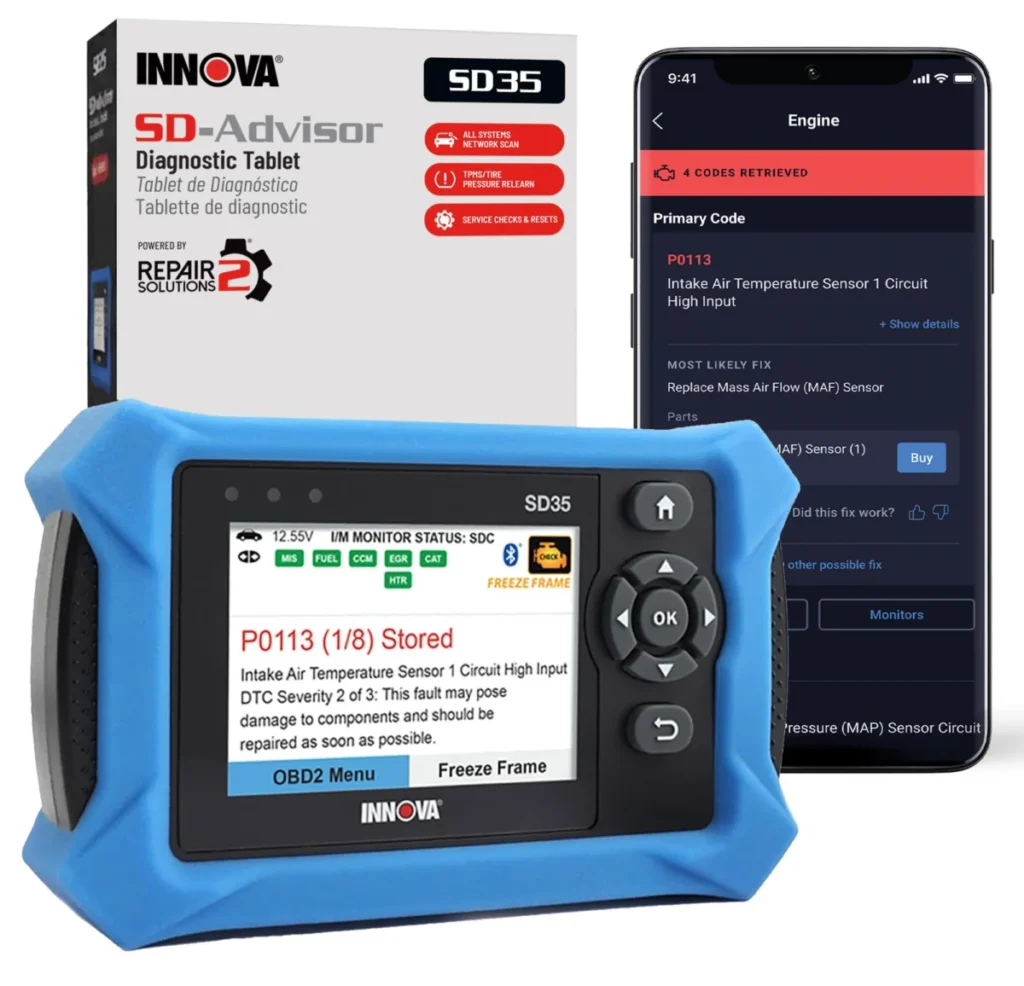

The SD35 is a tablet-based enhanced scan tool that reads and clears engine, transmission, ABS, SRS and TPMS codes and streams live data such as RPM, fuel trims and oxygen sensor readings. It adds a battery and alternator test plus an oil light reset, and pairs with the RepairSolutions2 app for verified fixes. For an owner facing a dash full of warning lights, that combination covers the common causes without a shop visit just to pull codes.

Its TPMS role is diagnostic rather than service: it reads and clears TPMS codes but does not activate, relearn or program sensors, which is the job of the THINKCAR VENU90 or XTOOL TP500. The tradeoff is deliberate: the SD35 is the pick when the tire light is one of several warnings and you want one screen that shows them all, not a dedicated tire tool.

Buyers who plan to service brakes themselves should note that the single oil reset is the only service function here, so an electronic parking brake retraction or ABS bleed needs a different tool.

Specifications

What matters in daily use

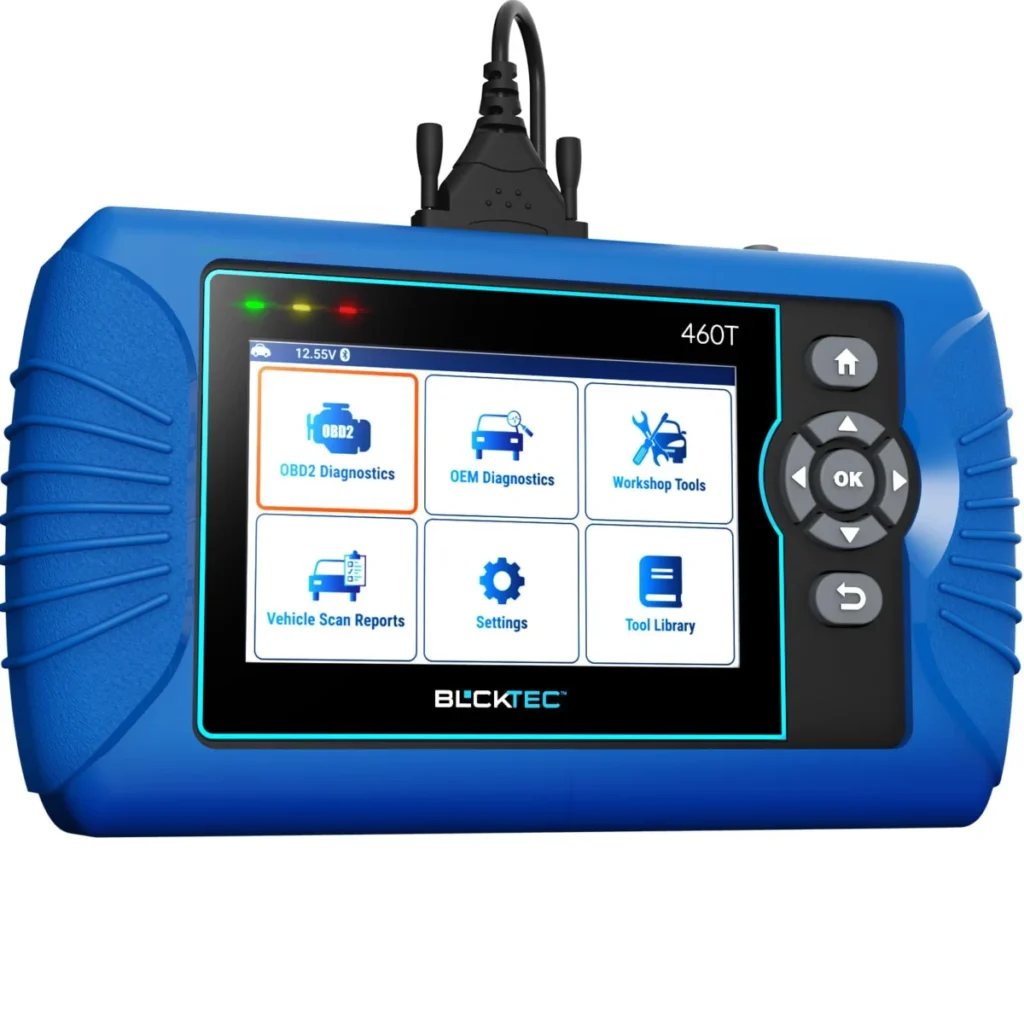

The 460T is an enhanced scan tool, not a bidirectional one, so it reads and clears codes across engine, transmission, ABS and SRS and runs 12 service resets, but it cannot command active tests. For a home mechanic chasing an ABS light or an oil reminder, that split is the practical one: you see the fault and finish routine maintenance without a shop visit, and you accept that a sticking actuator needs a tool that can drive it.

Twelve resets including oil, EPB, SAS, DPF, throttle relearn and TPMS relearn cover most scheduled jobs, and free lifetime updates keep the coverage current. The tradeoff is depth: the Autel MaxiCheck MX808S-TS adds bidirectional control and 32 functions, and the XTOOL TP500 pairs 17 resets with wireless operation. The 460T suits buyers who want the reset list at the lowest commitment and diagnose by reading data rather than triggering components.

Specifications
