Best OBD2 Scanner: 7 Picks Sorted by the Job You Need Done

What matters in daily use

The KW850 is the pick when budget matters but a bare code reader feels too thin. Beyond reading and clearing engine codes, it runs O2 sensor tests, EVAP system tests and a battery test, and shows live data as graphs and numbers on its color LCD. A built-in library of over 8,000 generic code definitions means the fault meaning appears on screen rather than in a search engine.

Two limits shape the decision. The extra tests cover the engine system only, so ABS and airbag modules remain out of reach, and the tool is read-only. Updates are included but the period is not stated, so the Autel AL319's confirmed free lifetime updates are the safer long-term bet. Against the Autel AL319, the KW850 wins on function count and screen size but loses on update certainty.

Specifications

What matters in daily use

A chassis or airbag warning light is where most cheap readers stop, and the AD310 is the exception in this group. It covers engine, ABS, SRS airbag and transmission systems, so a dash warning can be traced to a code instead of a paid diagnostic visit. It also supports the older protocols, including J1850 VPW, J1850 PWM, ISO 9141 and KWP2000, which matters on 1996 to mid-2000s cars.

The AD310 stays read-only, with no bidirectional control and no service resets, and its engine coverage is limited to emission-related faults. The Autel AL319 offers a color screen and confirmed free lifetime updates but reads engine codes only, while the FOXWELL NT201 matches the AD310's module coverage and adds free lifetime updates. The AD310's case is its breadth of systems at this price.

Specifications

What matters in daily use

The MS309 is a wired handheld code reader for the engine system only, with no bidirectional control. Its practical advantage is the on-screen DTC definition: generic, manufacturer-specific and pending codes appear with their meaning underneath, drawn from a built-in database of more than 1,000 codes. For someone seeing a check engine light for the first time, that removes the step where a bare code number sends you to a search engine.

Coverage has a real edge. The published notes say the MS309 cannot access OBD-II modules to clear codes on FCA vehicles (Chrysler, Dodge, Jeep) built after 2017 because of the Safe Gateway security system, and brands fitted with a similar gateway are unsupported too. It also does not support TPMS or other service functions. Compared with the Autel AL319, you trade the AL319's live data display for the MS309's on-screen definitions and freeze frame with VIN and calibration IDs.

Specifications

What matters in daily use

The MP69033 pairs a 2.8-inch backlit LCD with contrast adjustment and six physical buttons, including dedicated keys for VIN and DTC lookup. That layout suits a quick check: plug into the 16-pin connector, turn the ignition on, press OK, and the code and its meaning appear without menu digging. Live data, a real-time curve, freeze frame and I/M readiness are all present, and the tool draws power from the vehicle, so no battery is needed.

The tradeoff is scope. The manufacturer states plainly that ABS and airbag codes are not supported, and neither is the oil service light, so a chassis or airbag warning needs the ANCEL AD310 instead. The published specifications list oil reset and ABS and SRS airbag systems, which conflicts with that warning; treat the manufacturer's own compatibility note as the safer guide and confirm before buying. Against the KONNWEI KW850, the MP69033 offers a slightly larger screen but no O2 sensor or EVAP test.

Specifications

What matters in daily use

Readiness monitors are what a smog test checks first: if catalyst, EVAP or O2 monitors are not complete after a battery disconnect or a code clear, the vehicle can be turned away before emissions are even measured. The NT201 puts that status behind a single hotkey with color-coded lights, which is faster than walking a menu while an inspector waits. Live data covers RPM, coolant temperature, intake air temperature and oxygen sensor readings on a 2.4-inch color screen.

Its limits are stated clearly. The NT201 handles engine and emissions diagnostics on 1996 and newer gasoline vehicles with the 16-pin connector, including hybrids, but not electric vehicles, 24V heavy-duty trucks, or non-engine systems such as ABS, airbags and transmission. Updates are free for life with no subscription, which separates it from tools that charge after year one. Compared with the Autel AL319, the NT201 adds a dedicated readiness hotkey and O2 sensor monitoring.

Specifications

What matters in daily use

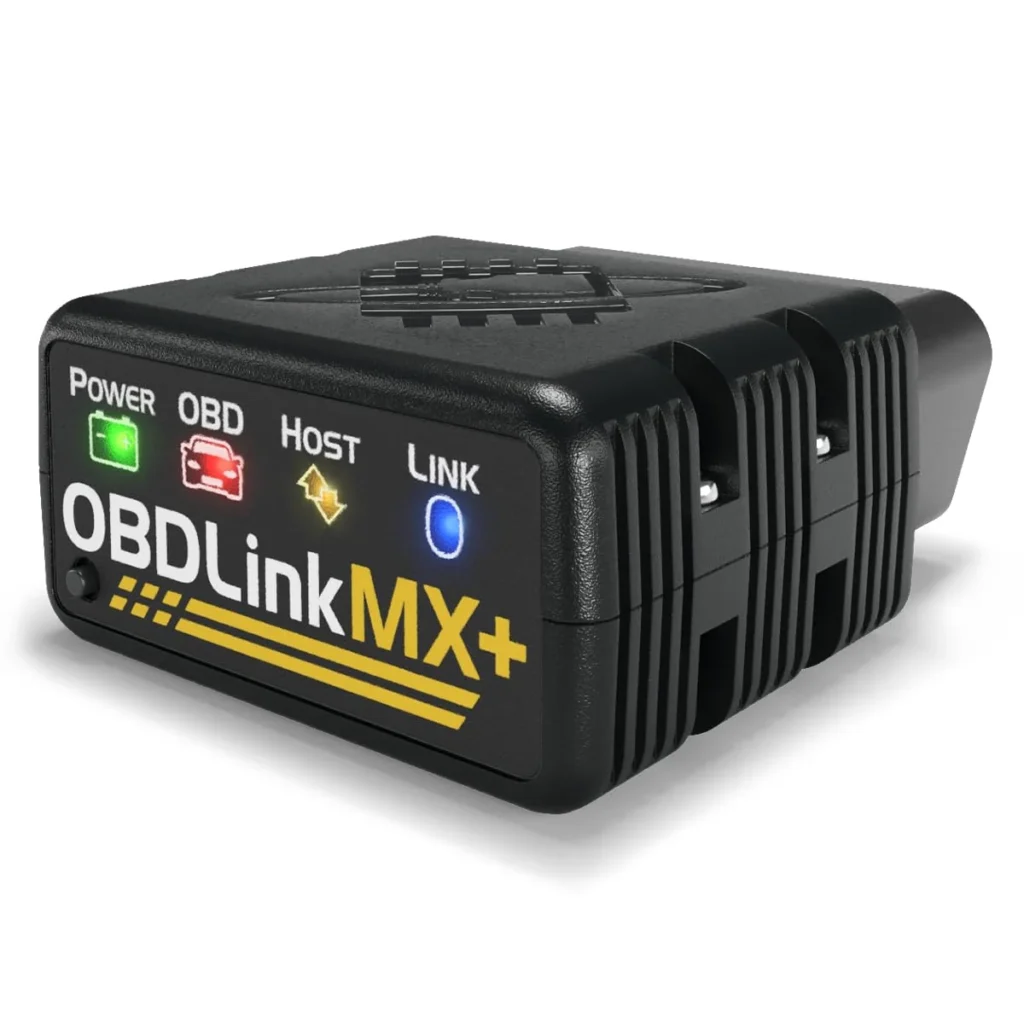

The OBDLink MX+ is an OBD2 adapter, not a handheld: it has no screen and relies on the OBDLink app on iOS, Android or Windows. That tradeoff buys a larger display than any budget code reader and lets the same dongle serve several cars. Enhanced OEM support covers Toyota, Honda, Ford, GM, Nissan, Mazda, Hyundai and Kia, so it reaches beyond generic engine codes on those makes.

Unlike a bidirectional scan tool, the MX+ cannot run active tests or service resets, so an electronic parking brake retraction or ABS bleed still needs a different tool. Compared with the Autel AL319, which shows codes on its own screen with no phone, the MX+ suits someone who already keeps a phone mounted and wants logging and graphs.

Specifications
